如何利用开源项目,构建分布式DICOM-WEB服务.

总体架构

1. Apache-kafka 作为消息队列.开发阶段可用RedPanda 替代.
2. Apache-Doris 作为数据仓库.提供DicomStateMeta,DicomImageMeta 及WadoAccessLog 存储,提供查询及统计分析.
3. PostgreSQL 作为数据库.提供数据存储功能.及检查索引功能.只存储PatientInformation,StudyInformation,SeriesInformation 这一级别的元数据.充分利用关系数据库的ACID特性.后续可用Citus进行扩容.
4. Redis 作为缓存.提供数据缓存功能.
5. Nginx 作为反向代理服务器.提供负载均衡,静态文件,TLS透传等

收图文件服务接收的文件,先存储到本地,再通过 kafka 发送到消息队列.

MessageBody = { TransferSyntax, SopInstancheUID, StudyInstanceUID,SeriesInstanceUID, PatientID, FileName, FileSize, FilePath }

消息分发到多个队列:

1. 存储队列: 存储文件信息,文件存储路径,文件大小.
2. 索引队列: 提取文件TAG信息, 包括PatientInfomation, StudyInformation, SeriesInformation, ImageInformation.并写入Doris库
3. 转换队列: 对于部分传输语法,因为Cornerstone3D无法解析,需要转换成CornerstoneJS能够解析的格式.转换失败的写入Doris转换记录表.

服务用途及说明

服务	用途
wado-server	DICOM Web WADO-RS API实现,support oauth2.
wado-storescp	CStoreSCP Provider,write dicom file to disk. and publish message to kafka:storage_queue,log_queue
wado-consumer	consumer storage-queue,and publish message to kafka:dicom_state_queue,dicom_image_queue,use stream_load write to doris
wado-webworker	generate metadata for wado-server and update related instances for series and study.

wado-server

DICOM Web WADO-RS API 接口实现 ,根据配置选项决定是否开启 OAuth2 认证.

wado-storescp

DICOM CStoreSCP 服务,接收DICOM文件并写入磁盘,同是分发消息到Kafka:  storage_queue,log_queue
- 1.存储文件路径: ${ROOT}/<TenantID>/<StudyInstanceUID>/<SeriesInstanceUID>/<SopInstanceUID>.dcm
- 2.往消息队列: storage_queue ,log_queue 发送消息

wado-consumer

消费Kafka消息队列storage_queue ,提取DicomStateMeta 到主数据库,并通过消息队列:dicom_state_queue,dicom_image_queue发布DicomStateMeta,DicomImageMeta 到Doris数据库
- 1.从storage-queue读,往dicom_state_queue,dicom_image_queue写
- 2.提取DicomStateMeta 到主数据库,
- 3.通过消息队列:dicom_state_queue,dicom_image_queue发布DicomStateMeta,DicomImageMeta 到Doris数据库 Stream_Load 模式

wado-webworker

定期扫描数据库,根据最后更新时间生成JSON格式的metadata用于加速WADO-Server的访问

总结

后续的相关子系统的介绍均围绕这里的进行展开.

存储文件及元数据路径:

1. 存储文件路径: ${ROOT}/TenantID/StudyInstanceUID/SeriesInstanceUID/SopInstanceUID.dcm
2. StudyMetadata 存储路径: ${ROOT}/metadata/StudyInstanceUID/SeriesInstanceUID.json
3. SeriesMetadata 存储路径: ${ROOT}/metadata/StudyInstanceUID.json

开发过程中需要用到的工具:

1. DICOMwebJS
2. Dcm4che
3. Wireshark
4. DVTk
5. DCMTK
6. fo-dicom
7. Cornerstone3D
8. MicroDicom DICOM Viewer
9. RadiAnt DICOM Viewer

当然别忘了最重要的DICOM标准:

DICOM Standard

另外需要掌握以下的技能:

1. Docker 技能
2. Nginx 技能
3. Linux 技能
4. PgSQL 技能

How To Build A Cloud DICOM-WEB Service. Flow Me: ** Part One Database Design and Database Interface **

1. how to use fo-dicom construct cstore-scu

2. DICOM-Cloud-Prepare

3. DICOM-Cloud Part ONE Database-Design

4. DICOM-Cloud Part ONE Database-TypeDefines

5. DICOM-Cloud Part ONE DICOM-Database-Interface

** Part Tow Common Function and Configuration Manager for Services Building **

1. DICOM-Cloud Part Tow 4.1 Common Module Introduce
2. DICOM-Cloud Part Tow 4.2 storage configuration
3. DICOM-Cloud Part Tow 4.3 database factory
4. DICOM-Cloud Part Tow 4.4 Redis
5. DICOM-Cloud Part Tow 4.4 Kafka Message Publish
6. DICOM-Cloud Part Tow 4.6 Extract Dicom Information
7. DICOM-Cloud Part Tow 4.7 Security
8. DICOM-Cloud Part Tow 4.8 Write File To Storage

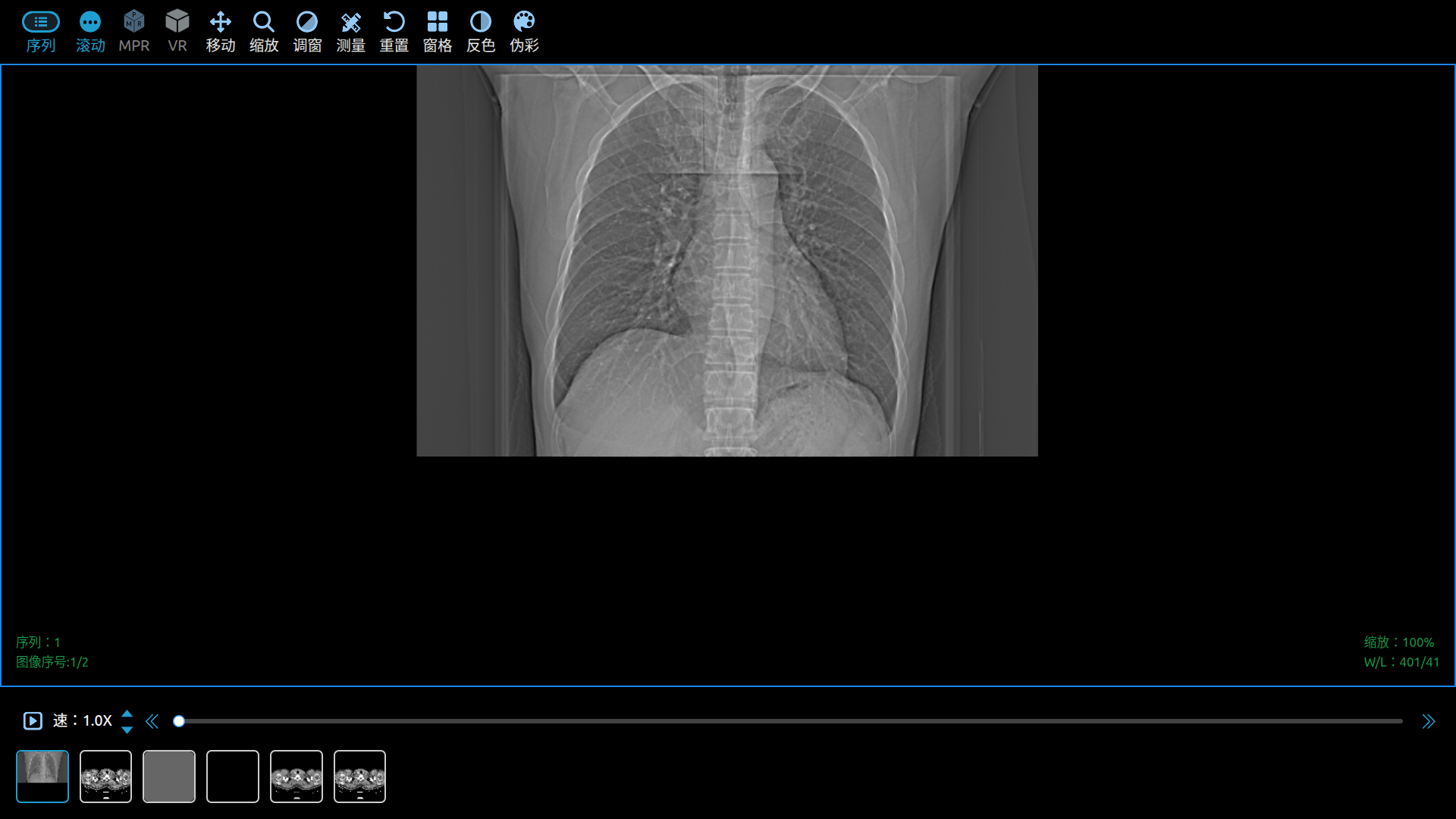

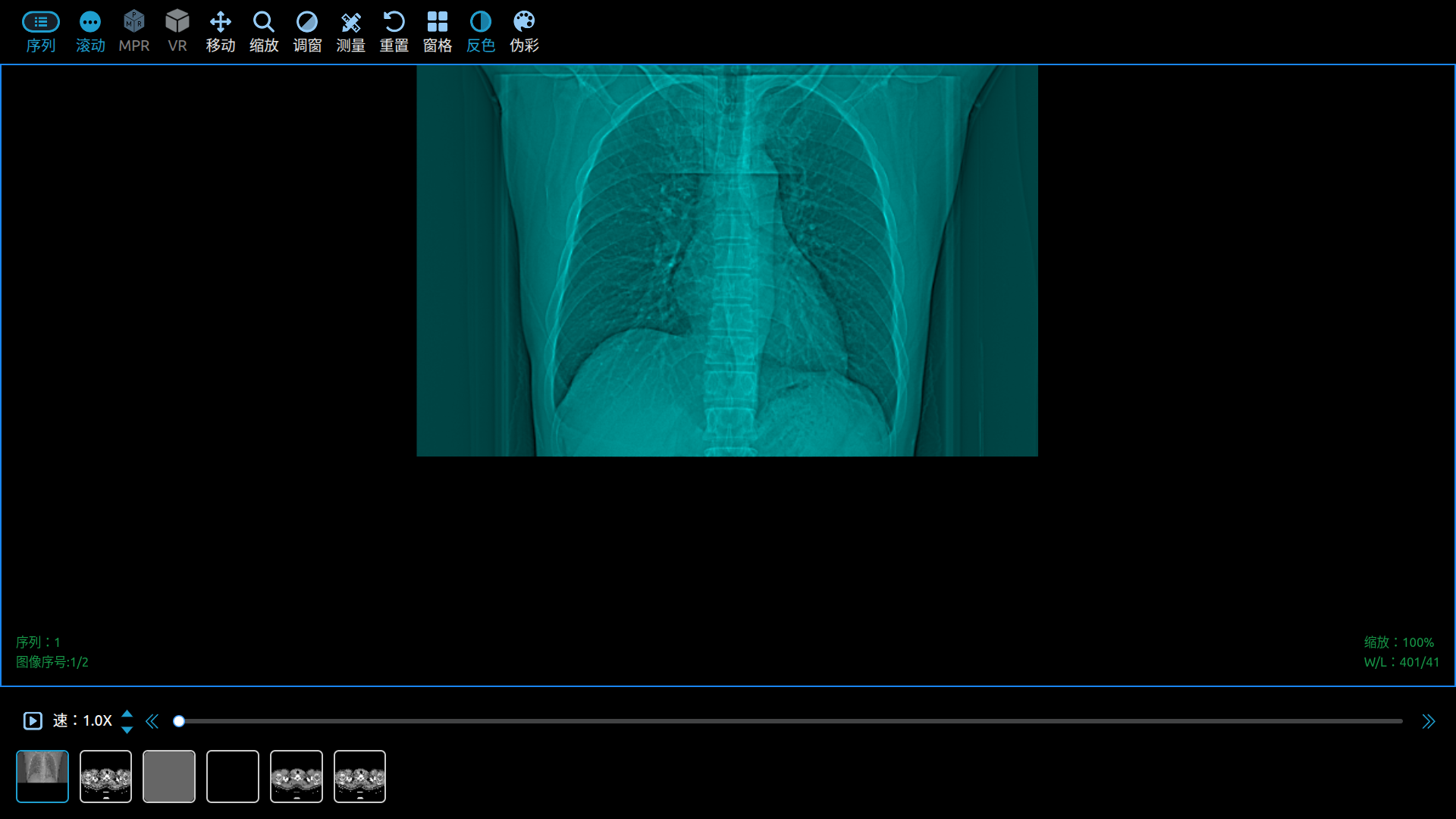

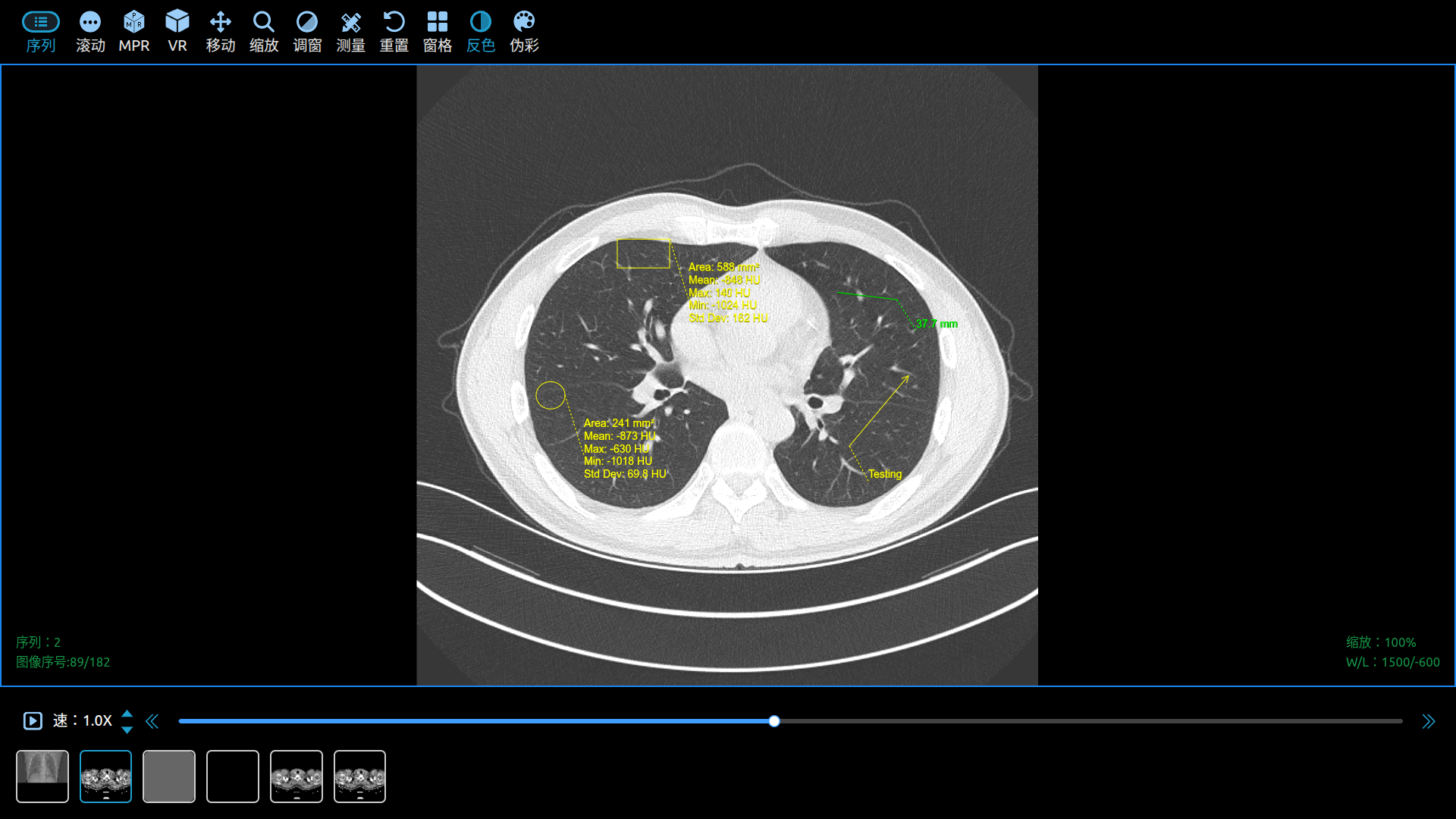

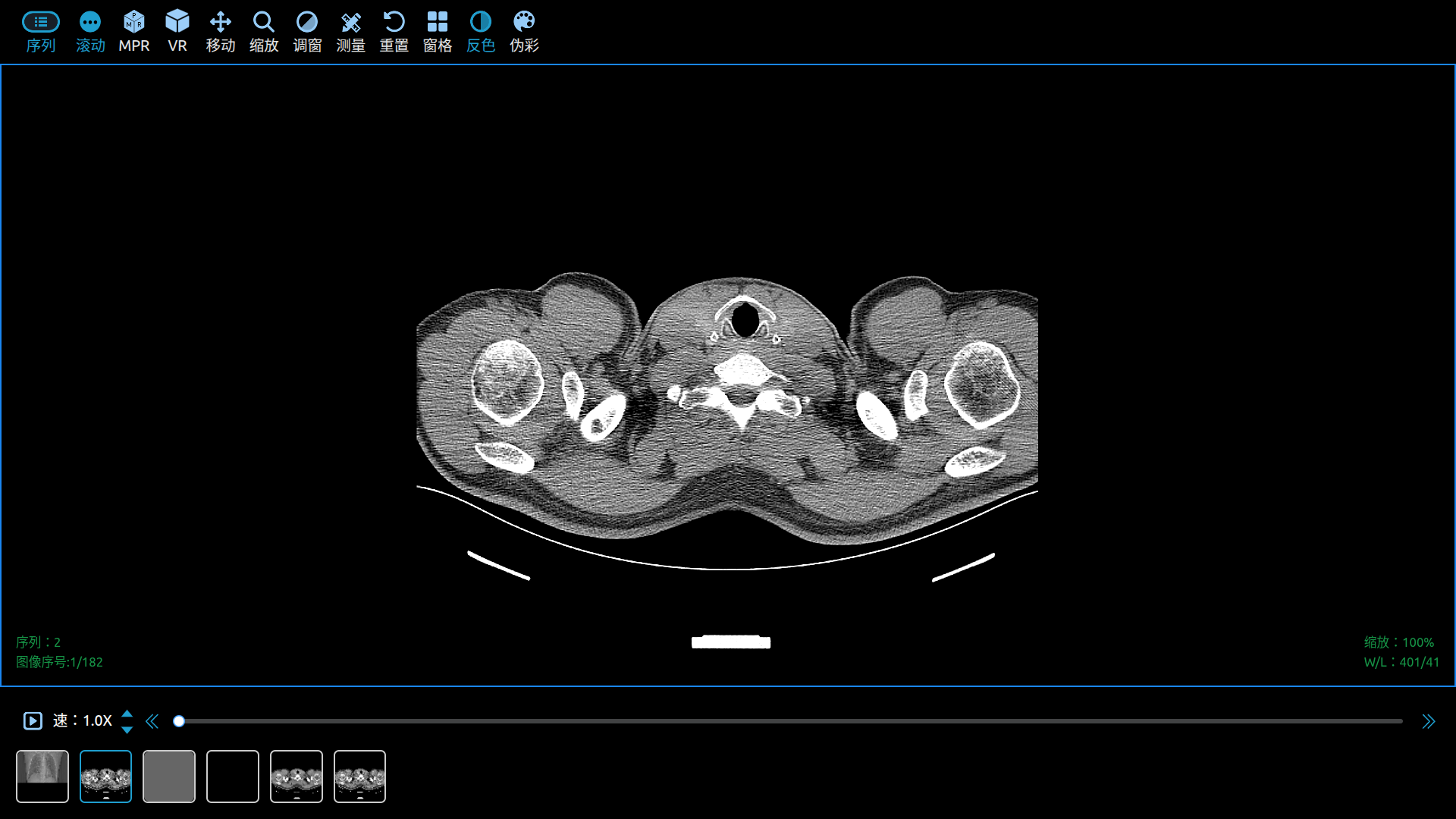

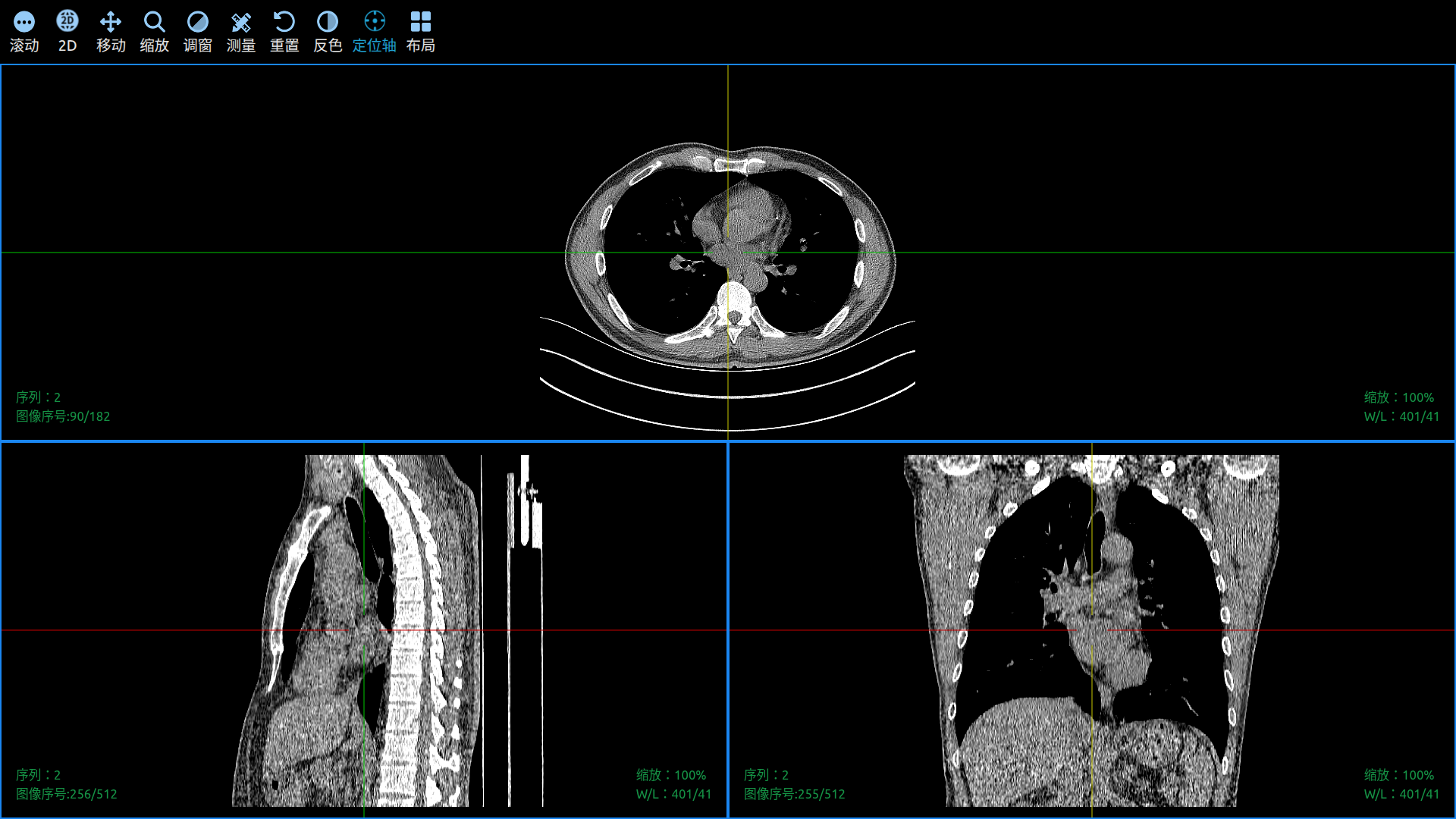

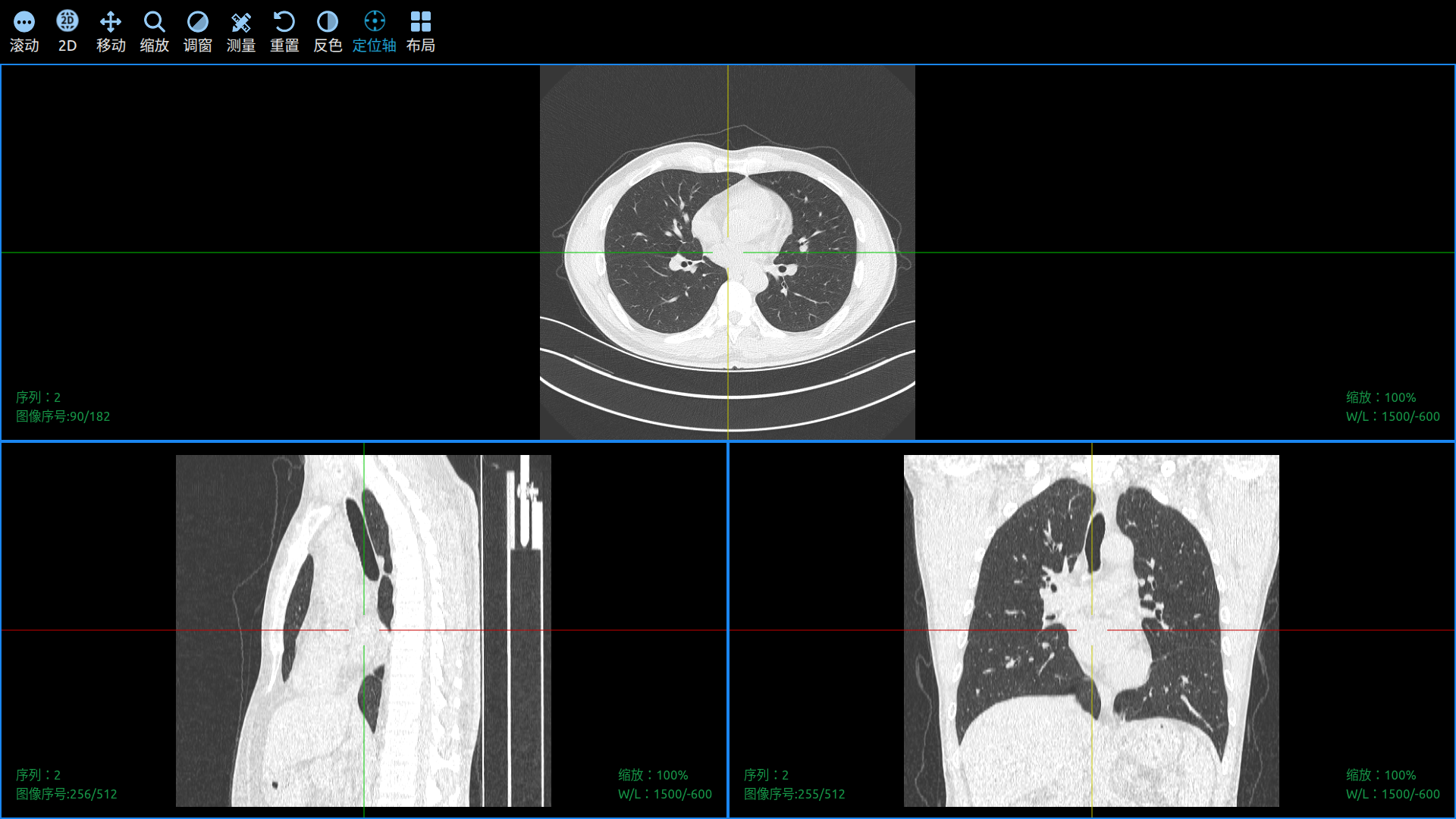

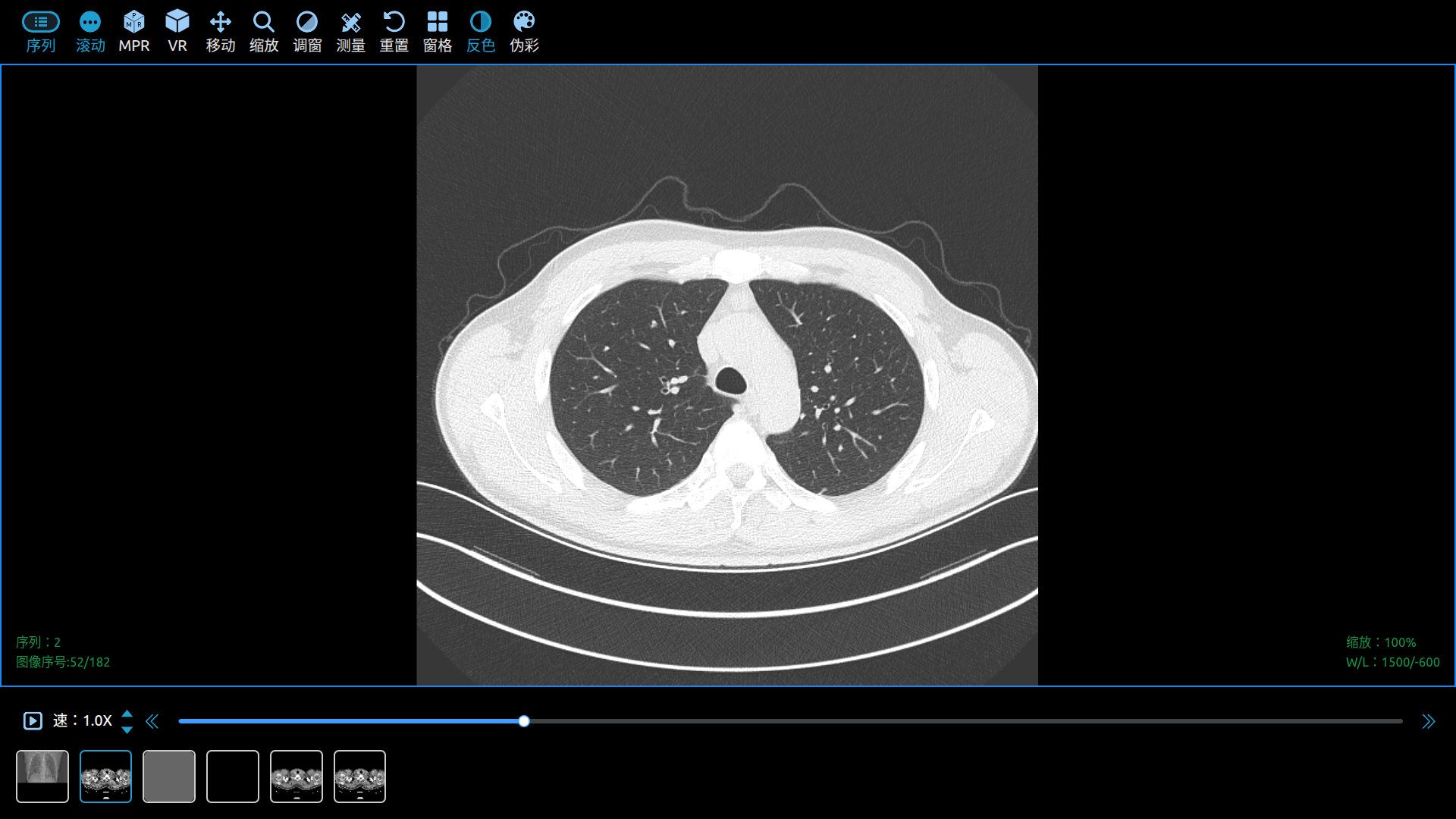

Use Cornerstone3D to View DICOM Images in a Web Browser.
